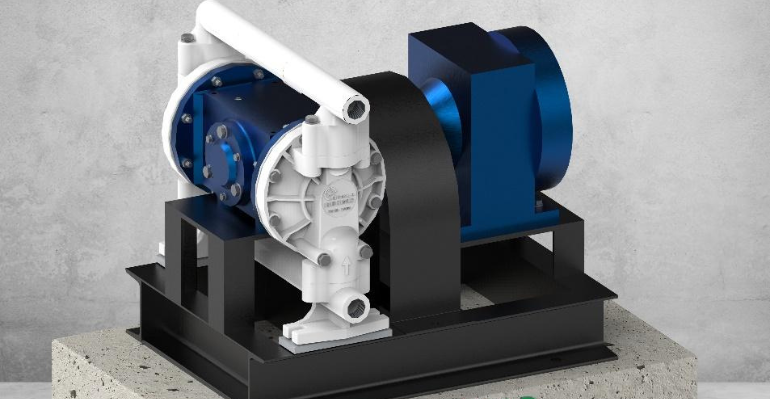

Electric Double Diaphragm Pump for High-Efficiency Industrial Transfer
The EODD pump is a new generation of electric-operated diaphragm technology designed as an alternative to air-operated systems. It combines the precision of an electric drive with the reliability of diaphragm-based operation, delivering consistent flow, reduced pulsation, and high efficiency.
This eliminates reliance on compressed air while maintaining the robustness of diaphragm pump technology. It is designed for continuous industrial applications in oil and gas, chemicals, and process industries. These features make the EODD pump a highly efficient alternative to traditional pneumatic systems.
Both pump types are widely used, and the right choice depends on your application, operating conditions, and site requirements.
Technical Specifications of EODD Pump
The electric operated double diaphragm pump is designed for safe and reliable operation in industrial applications under various process conditions.
| Parameter | Specification |
| Pump Type | Positive Displacement, Dual Diaphragm |
| Drive Mechanism | Electric Motor Actuated |
| Operation Mode | Automatic Stall Under Pressure |
| Flow Characteristics | Low Pulsation Output |
| Self-Priming | Yes |
| Dry Run Capability | Yes |
| Installation | Fixed Industrial Mounting |
| Application Type | Industrial & Shear-Sensitive Fluids |
It has an automatic stall feature that stops the pump if discharge pressure increases beyond safe levels, without the need for external switches or control devices.
Design Features of Electric Driven Diaphragm Pump
The electric operated double diaphragm pump is designed with a mechanical synchronized drive assembly that helps in smooth movement of the diaphragm and stable discharge.
Core design characteristics include:
- Precision mechanical linkage for balanced diaphragm motion
- Reduced pulsation without external dampeners
- Automatic stall functionality under high discharge pressure
- Compact and rigid drive construction
- Low vibration and noise during continuous operation
The electric drive technology ensures that it can be controlled efficiently and that the parts last longer in harsh working environments.
Operating Principle of the Electric Operated Diaphragm Pump
The electric driven diaphragm pump uses a mechanically synchronized dual diaphragm operation.
During operation:
- The electric motor converts rotary motion into reciprocating diaphragm movement.
- One diaphragm creates suction, drawing fluid into the chamber.
- The opposite diaphragm simultaneously pushes fluid toward discharge.
- Internal check valves ensure controlled, one-directional flow.
- When discharge pressure increases excessively, the pump safely stalls.
This positive displacement pump ensures controlled transfer with minimal pulsation.
Performance Capabilities of Electric Double Diaphragm Pump Technology
The system is designed to ensure stable discharge in harsh industrial conditions. Unlike pneumatic pumps, this system does not have the disadvantage of air pressure fluctuations and irregular cycling. This makes the electric double diaphragm pump ideal for applications requiring consistent flow and efficiency.
Key performance characteristics include:
- Consistent output under pressure variation
- Smooth discharge without external pulsation dampeners
- Reduced vibration compared to air-driven systems
- Capability to handle shear-sensitive liquids
- Reliable operation where compressed air is unavailable
These performance benefits make the EODD pump suitable for precision-driven industrial applications.
Industrial Applications of EODD Pump
This electric diaphragm pump is designed for fluid transfer in gas-related and industrial systems and can be used across a wide range of applications.
Industries and uses include:
- Oil & gas fluid handling
- Chemical transfer systems
- Sludge and wastewater processing
- Paints, coatings, and specialty chemicals
- Fuel circulation systems
- Lubrication transfer operations
Due to its mechanical control, this pump can be highly effective in applications where a constant, low-pulsation discharge is necessary. For a broader selection of pump technologies across industries, explore our complete pump range.
Installation and Maintenance of Electric Operated Diaphragm Pump
The proper installation is essential to long life and reliable operation.
Installation considerations:
- Ensure accurate alignment of motor and pump assembly
- Maintain airtight suction piping
- Install strainers when handling contaminated fluids
- Secure rigid base mounting
Routine maintenance includes inspection of the diaphragm, valves, vibrations, and verification of motor alignment. Since the system does not rely on compressed air, maintenance requirements are reduced.
Manufacturing & Supply Capabilities for Electric Double Diaphragm Pump
As an experienced manufacturer of electric operated diaphragm pumps, we emphasize precision engineering, reliability, and customization of the products to suit specific needs. Each of our electric driven diaphragm pumps is built to provide long service life and reliable performance in the industry.
Our supply capabilities include:
- Standard industrial configurations
- Custom-built units based on process requirements
- Material selection options for corrosive or hazardous fluids
- Skid-mounted assemblies for integrated installations
- Bulk project supply and export support
We follow strict quality control to ensure consistent performance, reduced downtime, and reliable delivery schedules.
Why Choose Us for Electric Operated Double Diaphragm Pump?
Choosing the right partner is just as important as selecting the right pump. At NND Oil & Gas, we combine engineering expertise with industry experience to deliver reliable and efficient electric operated double diaphragm pump solutions.
Our strengths include:
- High-efficiency pump designs with optimized energy performance
- Precision-engineered systems for stable, low-pulsation operation
- Custom-built solutions based on specific process requirements
- Reduced maintenance designs with long service life
- Strict quality control for consistent industrial performance
- Technical support for selection, installation, and operation
Get a Customized Electric Operated Double Diaphragm Pump Solution
If you’re moving from an air-driven system or have a new system to install and require a high-efficiency electric-driven diaphragm pump, our engineering team is available to assist. Please provide us with your application information, including the type of fluid to be handled, desired flow rate, pressure requirements, temperature range, and location of the pump. Our team will use your application requirements to recommend the best configuration of an electric-driven diaphragm pump.
Our objective is to provide a solution that offers future reliability, optimized energy consumption, and consistent industrial performance. Contact us today to discuss your requirements and get the right electric double diaphragm pump solution for your application.Frequently Asked Questions – Electric Double Diaphragm Pump
1. What is the difference between an EODD pump and an AODD pump?
An EODD pump is powered by an electric motor and provides consistent flow, higher energy efficiency, and low pulsation, making it suitable for controlled industrial applications. An AODD pump operates using compressed air and is ideal for hazardous environments, offering flexibility, dry-run capability, and safe operation without electrical components.Both pump types are widely used, and the right choice depends on your application, operating conditions, and site requirements.
