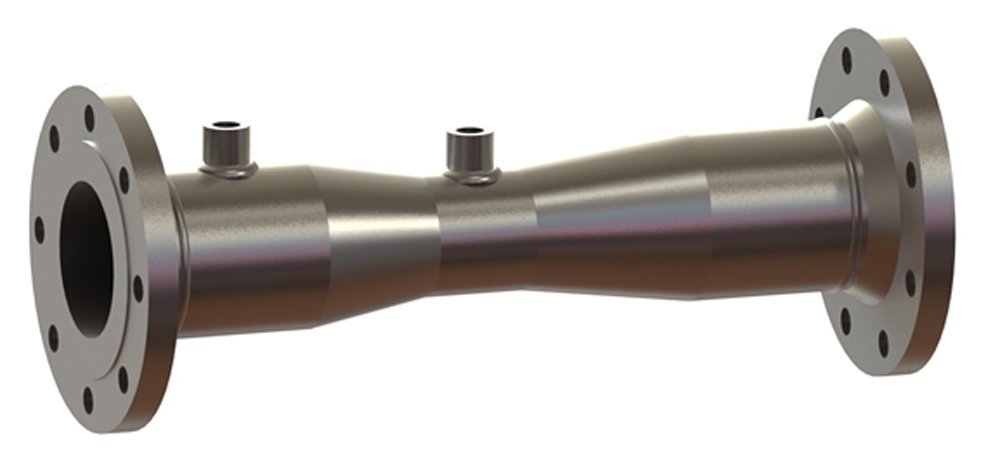

Venturi Tube for Differential Pressure Flow Measurement
A Venturi tube flow meter is a differential pressure flow measurement device used to measure the flow rate of liquids, gases, and steam in closed pipeline systems. The pressure difference created is directly related to fluid velocity and flow rate.
The device can be used for the measurement of the flow of various fluids, including liquids, gases, and steam, over a wide range of operating conditions. Due to its smooth geometry, it ensures stable measurement performance with low permanent pressure loss, and making it ideal for industrial flow measurement applications for the measurement of fluid flow.
Venturi Tube Flow Meter Working Principle
A venturi tube flow meter operates based on the principle of differential pressure, which is governed by Bernoulli’s equation. When fluid flows through the converging section of the device, there is a decrease in the cross-sectional area, causing an increase in velocity and a decrease in pressure.
Operating sequence:
- Fluid enters the converging section
- Flow area decreases gradually
- Velocity increases and pressure decreases
- Minimum pressure occurs at the throat
- Differential pressure is generated
The pressure tapping points at the upstream section and throat measure this pressure difference. This pressure difference signal is then sent to a secondary device, like a differential pressure transmitter, to convert it into a flow rate. This operating principle is used in all differential pressure flow devices such as Orifice Meter. However, the venturi meter offers a higher pressure recovery.
Venturi Tube Meter Design and Construction
A venturi tube meter is made up of three sections that are precisely engineered to ensure smooth flow and accurate measurement.
Design features include:
- Smooth converging inlet section for controlled acceleration
- Cylindrical throat section for stable pressure measurement
- Gradually expanding diverging section for pressure recovery
The smooth transition between the sections helps in reducing turbulence, flow separation, and erosion. With no moving parts, the Venturi flow tube ensures long service life and minimal maintenance. In high-pressure and high-temperature environments, its design makes it a good part of a venturi meter system used in continuous industrial processes.
Custom Design and Manufacturing Options for Venturi Tube
Venturi tubes can be custom-designed and manufactured to meet specific project and process requirements. Customization of these flow elements will ensure that they meet the pipeline specifications.
Customization options include:
- Custom line sizes and throat ratios
- Special material grades for corrosive or high-temperature service
- High-pressure or special flange standards
- Customized pressure tapping configurations
- Compliance with project-specific engineering and inspection requirements
Customization of the parts will ensure that the system functions in the best possible manner and that it integrates well into the existing pipeline system if the flow meter is being used.
Technical Specifications for Venturi Meter
| Parameter | Specification |
|---|---|
| Measurement Principle | Differential Pressure |
| Flow Media | Liquid, Gas, Steam |
| Primary Element | Venturi Tube |
| Pressure Rating | ANSI B16.5 Class 150, 300, 400, 600, 900, 1500, 2500 |
| Operating Temperature Range | 30°C to 400°C |
| Materials of Construction | Carbon Steel, Stainless Steel, Duplex Stainless Steel, Inconel, Hastelloy, Titanium |
| Pressure Tappings | Upstream & Throat |
| Installation Orientation | Horizontal / Vertical |
| Maintenance Requirement | Minimal (No Moving Parts) |
| Application Type | Continuous Industrial Service |
Venturi Flow Tube Material of Construction
The venturi flow tube can be made of a wide variety of different materials to suit different process requirements.
Common materials of construction:
- Carbon Steel
- Stainless Steel
- Duplex Stainless Steel
- Inconel
- Hastelloy
- Titanium
The selection of material depends upon pressure, temperature, corrosion resistance, and similarity to the process fluid. Selecting the right material ensures that the strength of the tube can be maintained when it is used in a harsh environment.
Venturi Pipe Used in Industrial Applications
The venturi pipe is used in industries requiring accurate and reliable flow measurement with low pressure loss of fluids, both liquid and gaseous. Its smooth inner surface makes it possible to use it to measure clean fluids as well as fluids with solids.
Typical application areas:
- Oil and gas production and processing facilities
- Refineries and petrochemical plants
- Power generation systems
- Chemical and fertilizer plants
- Water supply and wastewater treatment systems
The system is commonly employed in large pipes because it has low pressure loss and is able to function properly for a long time.
Pressure Rating as per ANSI B16.5
Venturi flow elements are designed in accordance with ANSI B16.5 pressure ratings.
Available pressure classes:
- 150, 300, 400, 600, 900, 1500, 2500 ANSI B16.5 Class
The pressure rating class used is dependent upon the design pressure of the pipe, conditions of service, and safety considerations.
Operating Temperature Range for Process Conditions
Venturi flow elements can be used for working over a wide range of temperatures.
Standard operating temperature range:
- 30°C to 400°C
The allowable temperature depends on:
- Material of construction
- Pressure rating
- Sealing and flange configuration
The proper selection of materials and design ensures safe and reliable functioning of the Venturi meter within the given temperature range.
Venturi Meter Installation Considerations
Proper installation is essential for accurate measurement.
Installation guidelines:
- Adequate straight pipe lengths upstream and downstream
- Horizontal or vertical installation is possible
- Install in a fully filled pipeline
- Proper routing of pressure impulse lines
Following proper installation procedures ensures a reliable differential pressure and proper flow measurement with the venturi-tube flow meter.
Performance Characteristics of Venturi-Based Flow Measurement
A Venturi-based system ensures consistent and reliable performance in terms of measurement within an industrial setting.
Key performance characteristics:
- High measurement accuracy
- Excellent repeatability
- Low permanent pressure loss
- No moving parts
- Long service life
- Minimal maintenance requirements
Due to such characteristics, venturi tube meters are often used in critical applications where reliability and energy efficiency are of primary importance.
Request Technical Support or Quotation
If you have any requirements or need information, feel free to contact us. Our team will provide you with information or quotes based on your requirements. Our team will provide information or quotes based on your requirements. You can select the best venturi tube flow meter based on your requirements.
Frequently asked questions
A Venturi flow meter is used to measure the flow rate of liquids, gases, or steam in closed pipelines using differential pressure. It is used in industries such as the oil and gas, power, chemical, and water industries, among others, where accurate flow measurement and low pressure loss are required for smooth operation.
A venturi flow tube is a full flow measurement device, and it works on the basis of the pressure drop to measure the flow. The venturi is a special pipe that creates the pressure drop. It has been noticed that the venturi pipe are used interchangeably, but it is the actual measuring part.
The flow meter works based on the Bernoulli principle. When fluid flows through the venturi tube, the pressure at the throat reduces. The pressure difference between the inlet and the throat can be used to calculate the flow rate.
It is used for measuring clean liquids, gases, steam, and fluids with a small percentage of suspended solids. This makes the measurement applicable in various industrial and oil & gas industries.
