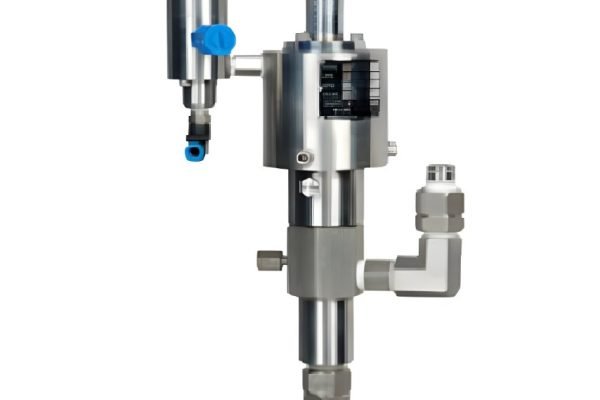

Air/Gas Operated Metering Pump

An air operated metering pump is used to deliver precise and controlled dosing of chemicals in industrial processes. It is reliable and safe because it uses…

Enquiry

Request a quote

Tell us your duty and our engineers will respond within one business day.

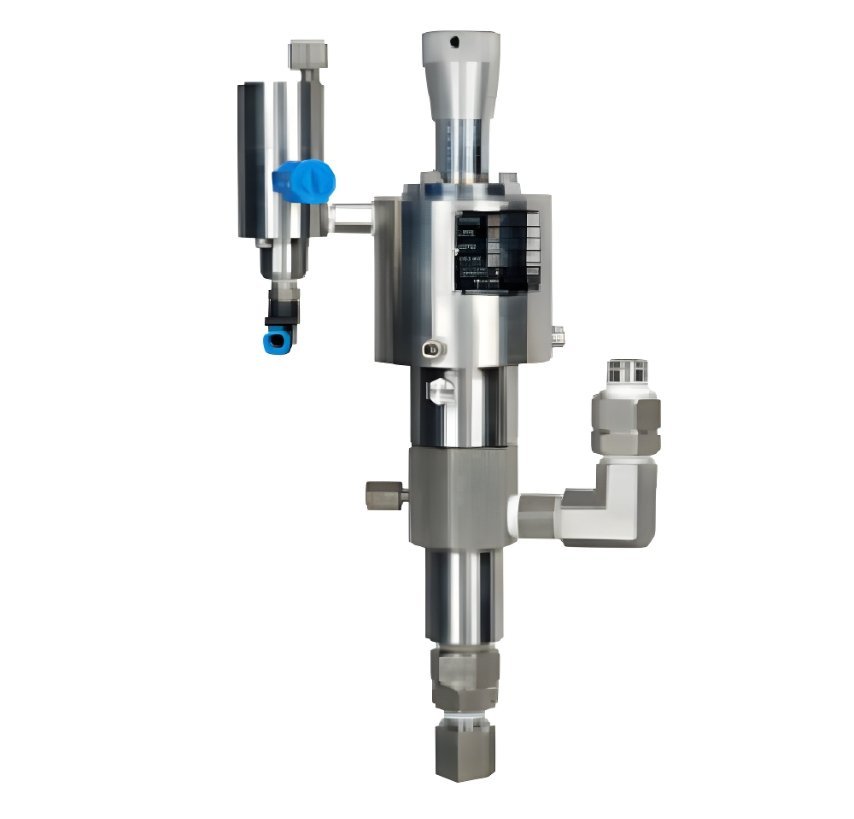

    Air/Gas Driven Operated Dosing Pump for High-Pressure Environments

    An air operated metering pump is used to deliver precise and controlled dosing of chemicals in industrial processes. It is reliable and safe because it uses gas or air pressure to operate.

    At NND Oil and Gas, this system is designed for accuracy, durability, and consistent performance across demanding industrial environments.

    It is also commonly referred to as a pneumatic metering pump and is widely used as an industrial dosing pump across various applications. It is simple to operate, requires little maintenance, and delivers smooth and reliable performance even in high-pressure conditions. Get in touch with us to discuss your chemical dosing requirements and select a suitable air-operated metering pump for your application.

    Air/Gas Driven Operated Dosing Pump for High-Pressure Environments

    Gallery

    Technical Specifications

    Parameter Details
    Series PDP Series
    Type Single-Acting Reciprocating Plunger Type
    Capacity Range 0.025 to 75 LPH max.
    Max. Discharge Pressure Up to 150 kg/cm²
    Material of Construction SS304, SS316, SS316L
    Capacity Adjustment Micrometre adjustment and speed relay timer
    Temperature Range 30°C to 100°C

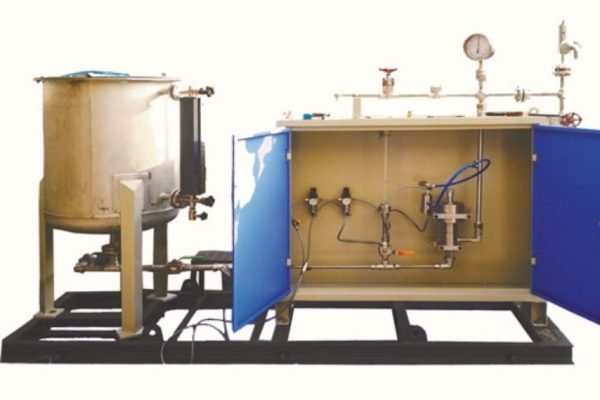

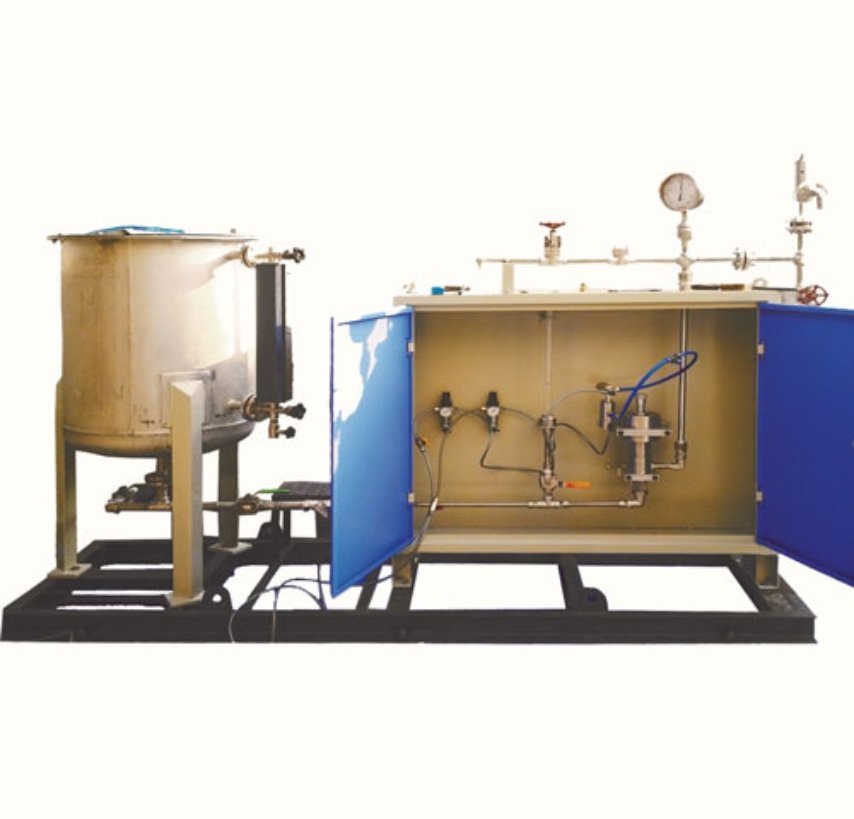

    Integrated Dosing System Features and Skid Configuration

    This air operated metering pump can be supplied as part of a compact, skid-mounted chemical dosing system, with a tank, calibration pot, piping and accessories selected for the application.

    • Air/natural gas-operated chemical dosing pump
    • 400 / 500 / 1000 litre CS / SS tank with level gauge and insulation
    • Strong skid frame suitable for rough industrial use
    • Built-in calibration pot for accurate measurement
    • Stainless steel piping with valves and fittings for leak-proof operation
    • Fully tested at maximum pressure before delivery
    • Pump and accessories housed in a secure enclosure
    • Epoxy coating for corrosion resistance
    • Designed to handle thick and viscous liquids, even in cold conditions

    Optional Features:

    • Tank heaters with temperature control (flameproof design available)
    • Flow monitoring and measuring system with totaliser
    • Flameproof and non-flameproof construction options
    Integrated Dosing System Features and Skid Configuration

    Pump Design and Performance Features

    • Pneumatic plunger pump made from SS 316 material
    • Safe and reliable operation
    • Ceramic plunger (optional coated or hard-faced stainless steel)
    • Adjustable metering pump with micrometer flow control
    • Wide flow adjustment ratio (up to 100:1)
    • Accuracy of ±1.0% or better
    • Simple design with fewer parts for easy maintenance
    • Pressure amplification ratio of 1:30
    • Maximum pressure up to 150 kg/cm²
    • Input air/gas supply: 2–9 kg/cm²
    • Adjustable pressure control using an air regulator system
    • Supplied with a built-in filter regulator and calibration pot

    The pump setting is a starting point for achieving the required dose. Our guide to metering pump adjustment and calibration explains how to check the delivered flow and record the operating conditions for future checks.

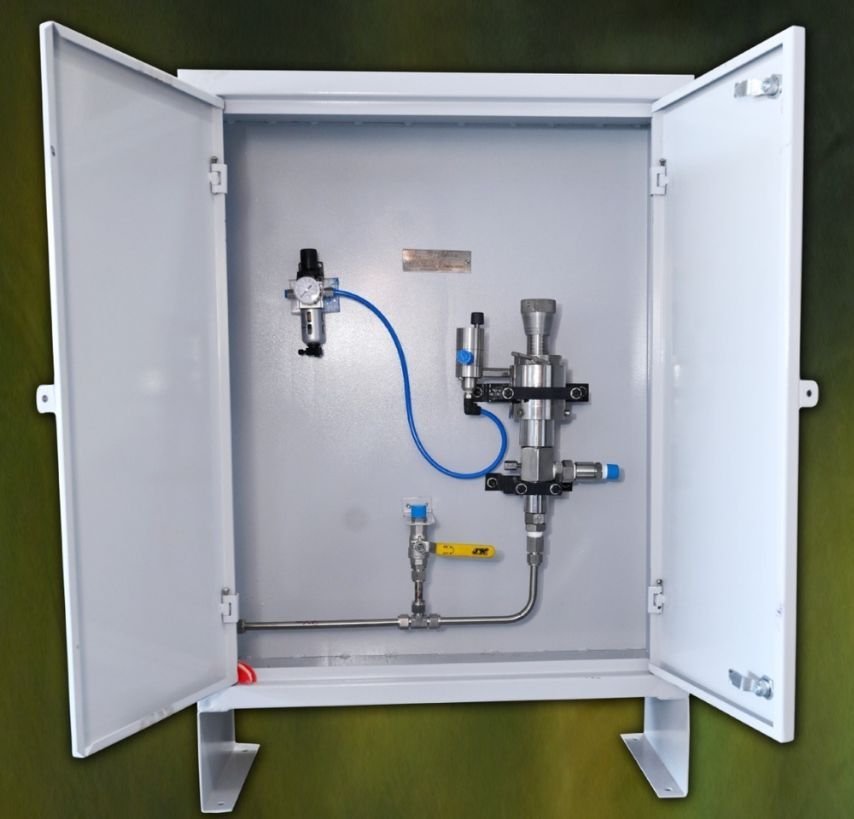

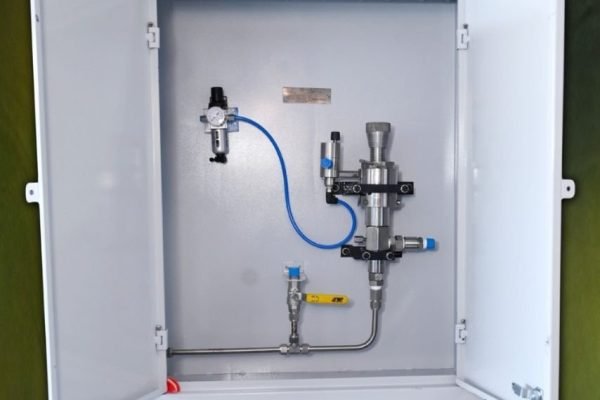

    Standard Accessories and System Components

    • Air/gas filter and pressure regulator
    • Calibration pot
    • Interconnecting piping
    • Fully assembled within a cabinet

    Injecting a measured dose into a process line calls for different pump performance than transferring liquid between tanks. Compare pneumatic metering pumps and AODD pumps by flow control, discharge pressure and intended duty.

    Standard Accessories and System Components

    Optional Accessories

    • Dosing tank in carbon steel or stainless steel
    • Insulated tank and piping
    • Complete skid-mounted dosing system with instruments and flow meters
    • Flameproof electrical heaters
    • Flow rate monitoring system (flameproof / non-flameproof options)

    Pump Models and Flow Capacity Options

    Model Capacity Range (LPH)
    PDP-1-2.5 0.025 to 2.5
    PDP-1-5.0 0.05 to 5.0
    PDP-1-10 0.015 to 10
    PDP-1-20 0.2 to 20
    PDP-1-30 0.3 to 30
    PDP-1-50 0.5 to 50
    PDP-1-75 0.75 to 75

    Use the capacity ranges above to shortlist a model. Before confirming your choice, check that the pump can deliver the required dosing flow at your operating discharge pressure and with the available air supply. Our pneumatic metering pump selection guide explains what to include in your specification.

    Why Choose Our Pneumatic Metering Pumps?

    This air operated metering pump is intended to suit the needs of modern industries that require precise and consistent dosing. It provides smooth performance, simple control, and safe operation even in harsh operating circumstances.

    If you need a reliable dosing solution, this system delivers consistent performance while keeping your operations simple and efficient. You can also explore our full range of pump solutions for different industrial requirements.

    Enquiry Now

    Frequently asked questions

    An air / gas driven operated dosing pump is used to accurately dose chemicals or fluids in industrial processes. It is widely used in oil and gas, chemical processing, water treatment, and manufacturing applications where precise flow control is essential.

    Yes, the pump is designed to handle high-pressure applications up to 150 kg/cm² and can effectively manage viscous or thick liquids. Its robust plunger design and strong materials ensure reliable performance even in demanding conditions.

    You should consider flow rate requirements, discharge pressure, type of fluid (including viscosity and corrosiveness), operating temperature, and whether additional features like flameproof design or flow monitoring are needed.

    A pneumatic dosing pump operates using compressed air or gas to drive a reciprocating plunger. This mechanism allows controlled and consistent delivery of liquid, with adjustable flow rates using stroke length and speed settings.

    The pump offers high dosing accuracy of ±1.0% or better. It also features a wide flow adjustment ratio (up to 100:1), allowing precise control over small and large dosing requirements.
